Leica Disto X4 Laser Distance Meter
Functions and features
- Area and volume measurements
- Height tracking
- Painter function
- Pythagoras functions
- Smart horizontal mode
- Stake-out function
Package includes :
- Leica DISTO™ X4
- 2x AAbatteries
- 1x Handloop
- 1x Quick start Guide
- 1x Safety manual
Contact Us for Best Price
Description
Designed for bright, outdoor environments
Outdoor Measuring
The Pointfinder camera allows you to precisely target and measure distant objects in bright sunlight. The target object shows clearly on the DISTO’s high-resolution screen.

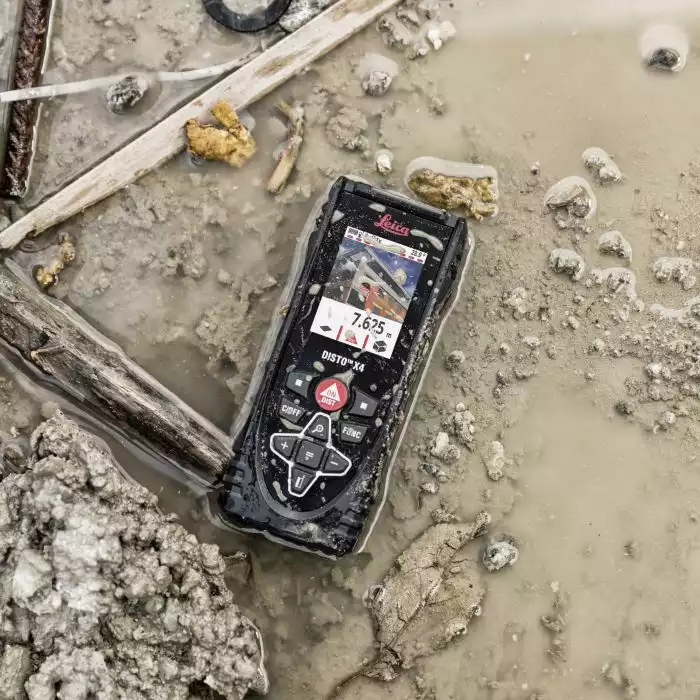

Truly Robust
This DISTO™ is drop-tested up to 2 m in height, water jet and dust protected. Its IP65 rating means you can clean it under running water.

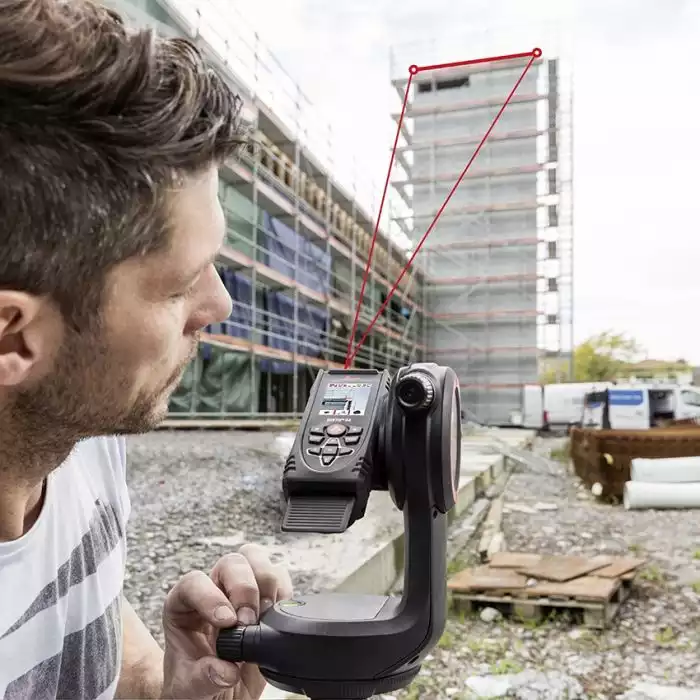

Point to Point Measurement
Transform your DISTO™ X4 into a real measurement station with the DST 360. It allows you to measure distances between any two points, from one position.
Quality Feel
The all-new DISTO™ X4 only uses the best quality materials to ensure consistent measurement results in different environments. A precision product you can trust.
Horizontal Measurements
Distance and tilt measurements allow you to determine horizontal distances with absolute precision. Use your laser measurement data to automatically generate realistic and scaled floor plans.
Specification
| Typ. distance measuring accuracy (ISO 16331-1 certified) | ± 1.0 mm | |
| Range (ISO 16331-1 certified) | 0.05 up to 150m | |
| Measuring units | m, ft, in | |
| X-Range Power Technology |  |
|
| Tilt sensor | |
|
| Tilt sensor accuracy to the housing | ± 0.2° | |
| Smart Base measuring range: Horizontal | 360° for use with Leica DST 360 | |
| Smart Base measuring range: Vertical | -64° to > 90° for use with Leica DST 360 | |
| Typ. tolerance of the P2P function for use with Leica DST 360 | ± 2mm at 2m, 5mm at 5m, 10mm at 10m | |
| Levelling range | 5° for use with Leica DST 360 | |
| Pointfinder with zoom | 4x | |
| Memory of last measurement | 20 | |
| Free software for Windows | |
|
| Free App for iOS and Android | |
|
| Smart Room function support | |
|
| General data interface | Bluetooth® Smart | |
| Data interface for 3D point data | Bluetooth® Smart | |
| Measurements per set of batteries | up to 4’000 (reduced when used with Bluetooth®) |
|
| Service life of batteries | up to 8h (reduced when used with Bluetooth®) |
|
| Multifunctional endpiece with automatic reference detection | |
|
| Batteries | 2x AA Alkaline | |
| Protection class | IP 65 | |
| 2m drop tested | |
|
| Dimensions | 132 x 56 x 29 mm | |
| Weight with batteries | 188g |
