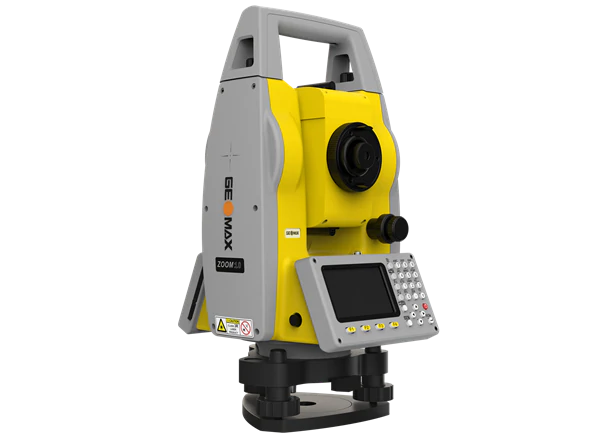

GeoMax Zoom 10 Total Station
The Zoom10 manual total station is a reliable solution at an affordable cost. To make your job easier, intuitive onboard software runs on two built-in displays. It ensures quick and accurate reflectorless measurement up to a range of 350m and angular accuracy of 2”.
X-PAD Ultimate GO is the solution for those who need a simple and flexible field software to be used in all surveying and tracking applications with GNSS receiver and total station. Combined with our manual total station, the Zoom10(*), you get a user friendly and cost-effective package which operates in the most challenging work environments for the best performance and value ratio.
Feature and Benefit
Working with the Zoom10 and the X-PAD Ultimate GO software, we can customise layers, blocks, lines and various geometries in our field surveys. After finishing the data collection, we export our DWG survey directly from our smartphone to the computer via internet. Leaving the field, the survey is already fully organized. We only have to add our footer and subtitles for the final delivery.
Let us support you. Contact us to find out more about the X-PAD GO & Zoom10 package.
Contact Us for Best Price
Description
Geomax 876826 ZOOM10 Manual Total Station
TheGeoMax Zoom10 Manual Total Station is what you get when you put affordability and efficiency into one manual total station. It is a high-performing entry-level survey instrument available at an excellent price point.
Ease of Data Collection What sets the Zoom10 apart from its contemporaries is that data collection is made possible via any Android tablet or phone. This compatibility element eliminates the need to acquire another data collecting device. Paired with the X-PAD software, importing/exporting data with the Zoom10 is convenient and straightforward, which fast-tracks and facilitates workflow on-site.
Superior Performance Anywhere The Zoom10 total station features a dual-axis laser compensation that enables quick and accurate point measurements even under challenging job site conditions. The instrument displays angular information that is precise to within 2″. It offers a 30x magnification scope with a sufficient field of view. Furthermore, the total station is capable of Reflectorless distance measurements to 350m.
Rugged BuildTheZoom10 Manual Total Station is built to endure the rigors of construction surveying. It can withstand temperatures of -20° C to 50° C and has an IP54 dust and waterproof rating. Furthermore, like any GeoMax device, this instrument boasts Hexagon’s standard quality assurance. You can be sure that the Zoom10 won’t easily crack in harsh environments.
Succeed at work with the Zoom10 Manual Total Station with its android-ready feature and easy data collecting function. Fast-track and get the job done with this high-performing survey instrument without breaking the bank.
Specification
| BRAND | GeoMax-positioning |
|---|---|
| ACCURACY | 2″ |
| COMPENSATION | Dual-axis |
| DISTANCE MEASUREMENT ON PRISM | 3000 m |
| DISTANCE MEASUREMENT NON-PRISM (REFLECTORLESS) | 350m |
| WEIGHT | 5.0 – 5.3 kg (w/o battery and tribrach) |
| KEYBOARD | 2 sides alphanumeric backlit rubber keyboard |
| DISPLAY | High resolution (280×160 pixel), 8 lines x 30 characters, illuminated |
| DATA RECORDING | 1 GB internal memory, Removable SD card, USB stick |
| INTERFACE / PORTS | Internal Bluetooth®, SD card, USB drive with micro USB |
| CAMERA | No |
| OPERATING TIME | 10-16h |
| OPERATING SYSTEM | Microsoft® Windows® CE 6.0 |
| TYPE OF USE | Automatic, Manual, Motorized |
| SMART STATION / ROVER | Yes |
| SOFTWARE | X-Pad Ultimate Survey |
